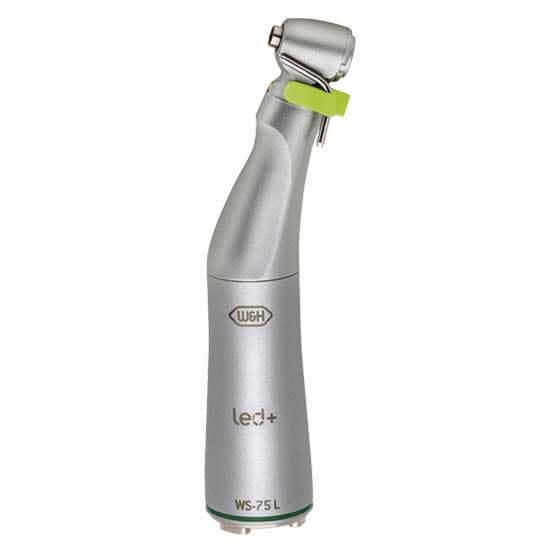

Surgical contra-angle Handpiece WS 75

Description

Providing the best treatment

The high standards required for the achievement of optimum surgical results are met by the W&H range of surgical contra-angle handpieces, whose design is the result of close attention to detail, high operational safety and stainless steel construction.

The main features at a glance
  • Durable and robust due to high-quality stainless steel and scratch-resistant coating (except WI-75 E/KM)
    Fatigue-free working thanks to optimal ergonomics
  • Can be dismantled for thorough cleaning (except WI-75 E/KM)
  • Thermo washer disinfectable and sterilizable
WS-75

Surgical contra-angle handpiece
with push-button
Coupling system: ISO 3964 (DIN 13940)
20:1, can be dismantled, single spray,
with hexagon chucking system, for surgical burs and cutters with contra-angled shank Ø 2.35 mm,
(shank hardness >50 HRC, >520 HV),
Kirschner/Meyer internal bur cooling system,
maximum drive speed 50,000 min-1

Indications
e.g.: implantation, osteotomy
