Description

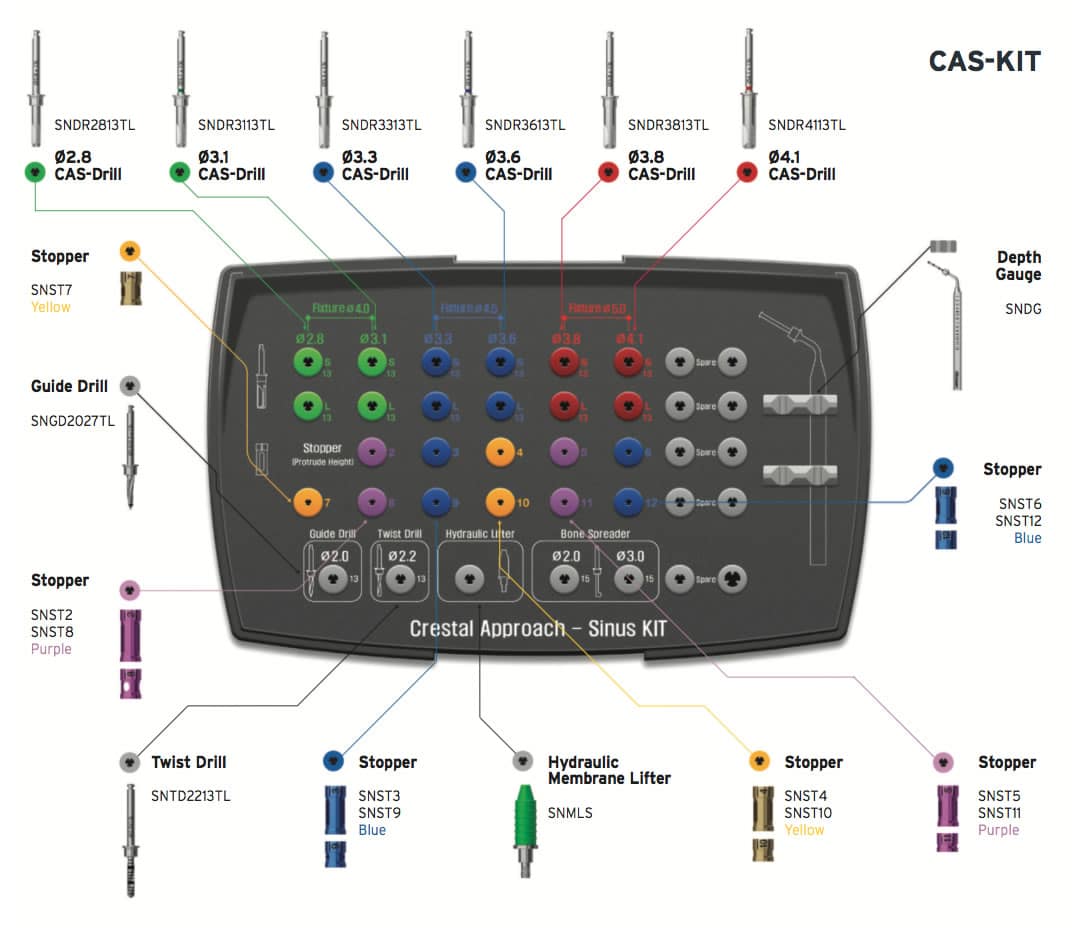

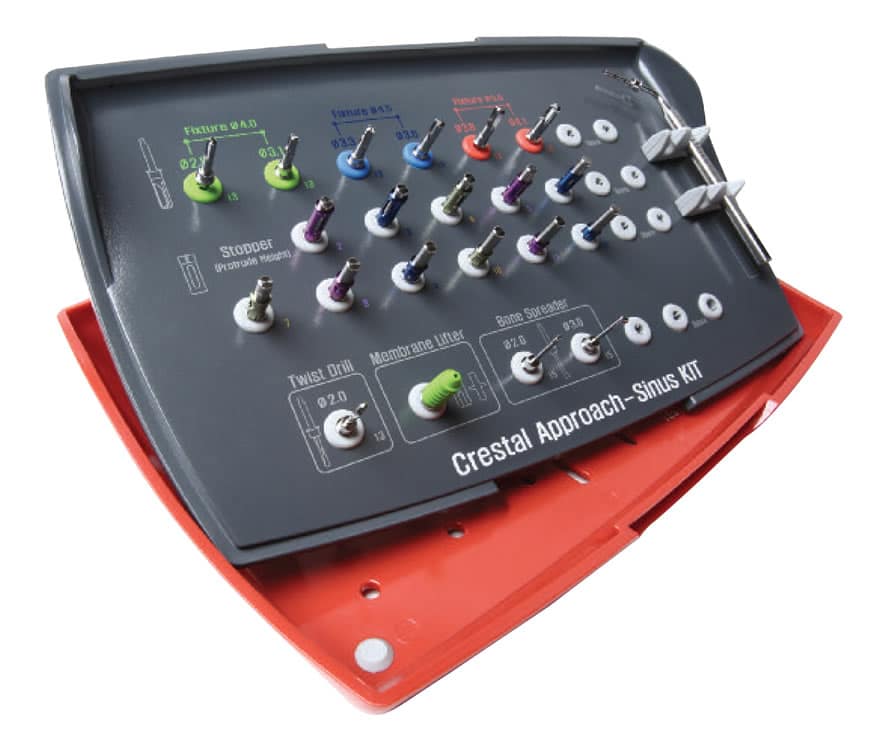

Crestal Approach Sinus Kit
The Crestal Approach Sinus KIT (CAS-KIT) is specifically designed to easily and safely lift the membrane in the maxillary sinus from a crestal approach.
Features of CAS-KIT
- Unique CAS-Drill safely and rapidly lifts the sinus membrane while drilling.
- Unique stopper system that prevents over drilling into the sinus cavity.
- Hydraulic Lift System that easily and safely lifts the membrane.
- New Bone Carrier System for transferring and filling bone graft materials.
- Simple and intuitive surgical system.
The CAS-Drill is designed to safely and rapidly lift the maxillary sinus membrane from a crestal approach.
The CAS-Drill can be used for either straight or tapered implants.
It is optimised for insertion torque, initial fixation strength, and tactile feedback when using OSSTEM’s TA III Implants.
CAS-Drill forms a conical bone barrier, protecting the membrane.
The atraumatic design of the drill tip allows the user to perform sinus surgery even if the sinus floor is flat, inclined septum and inferior alveolar canal.
The CAS-Drill tip has an inverse conical shape. This shape will form a conical bone chip when drilling, which assists with safely lifting the membrane. In addition, bone particles generated when drilling discharge upwards, producing a Membrane Auto-Lift Function.
Option to drill from low speed to high enabling the harvesting of autogenous bone at low speed.
Unique stopper system (in 1mm increments) that prevents over drilling into the sinus cavity.
Final drill diameter selected according to fixture diameter and bone density, independently of straight or tapered fixture type.
