Description

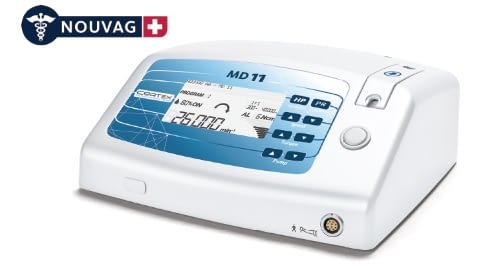

CORTEX IMPLANT MOTOR SYSTEM
A motor system capable of perfectly accomplishing any step of procedure in Implantology, due to its wide range of motor management and gear ratio.
Advantages:
• Sophisticated motor control for smooth and precise power delivery in any speed range
• Motor speed range of 300 – 40,000 rpm
• 70 Ncm of maximum torque with the 20:1 contra angle and graphical, real time torque control
• Sturdy, high quality design and finish
• Integrated pump system for cooling the instrument to avoid tissue damage
• 4 programs for drilling, cutting threads, screwing in the implant and placing the cover screw

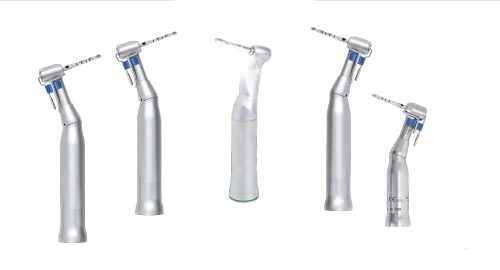

Contra Angles
• The autoclavable contra angles are made of medical stainless steel, solid and durable, available in 20:1 reduction ratio (with and without LED) and equipped with INTRA EN coupling.
• All contra angles are equipped with a cooling clip for internal and external cooling of the drill.
• Solid construction and well-thought-out details ensure a long service life and ensure trouble-free reprocessing.

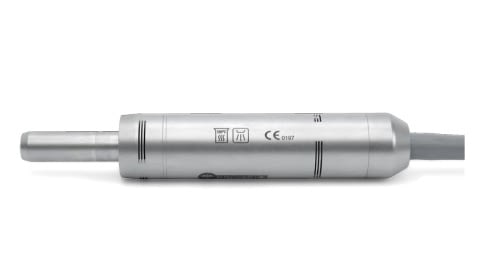

Electronic Motor
The electronic motor, the decisive connecting piece between the control unit MD11 and the contra angle, is worth mentioning because of its quiet, almost free of vibration and smooth power delivery in any speed range.
