Description
Ridge Expanders may be used in conjunction with socket formers and osteotomy burs if simultaneously placement of implants is undertaken, they can be used for seperation of the cortical plates for inter-positional grafting.
The four ridge expanders are manufactured from hardened Titanium Grade 5 Tip and sharpened for precise application.
They are D shaped or Parabolic in cross section.
The indented use uis expansion of the maxillary ridge to create adequate width for implant placement and to recontour the Labial Plate.
The D-Shape prevents buccal fracture by extending the expansion over great distance and should be used with the flat side towards the palate and convex side to the labial or buccal which leads to minimum bone compression and reduce the PH-Loss.

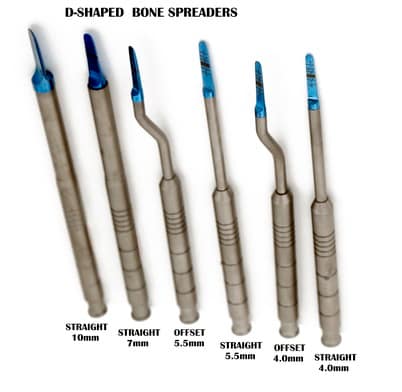

Sizes:
1) JULL-DENT 015A- Bone Spreader WIDTH: 4.0 mm Straight
2) JULL-DENT 015B- Bone Spreader WIDTH: 5.5 mm Straight
3) JULL-DENT 015C- Bone Spreader WIDTH: 4.0 mm Offset
4) JULL-DENT 015D- Bone Spreader WIDTH: 5.5 mm Offset
Caliberated at 5mm, 7mm, 8.5mm, 10mm, 11.5mm, 13mm, 15mm, 18mm.
Thickness At 10mm: 2.5mm Universal for all.
Also available in 7.5mm and 10mm Diameter on order.
Tip Material Used:
Titanium Grade 5.
Handle:
Non Magnetic Stainless Steel 316L.
