Description

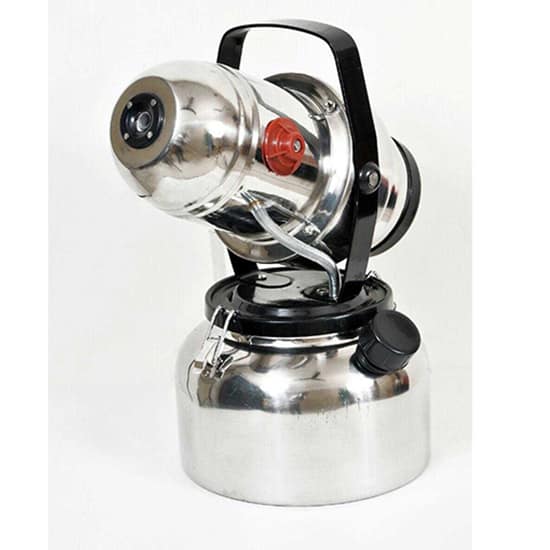

BIO X Fogger machine are used in sterilizing rooms as well as operation theater rooms.
Features:
- Dry Fog, Uniform Sub-Micron Size Liquid Particles.
- Adjustable Flow Rate Of 0-50 Ml/Minute.
- Digital Timer To Set The Fogger On For
1-99 Minutes. - High Speed FHP Motor For Maximum Thrust
Of Spray. - Advance Thrust Design Of Air-Jet Nozzle.
- Fog Thrust Of 50 >Feet.
- Highly Portable & Can Be Carried Or Moved Easily.
- Cover An Area Of > 20,000 Cubic Feet.
- Portable Turn Table Which Rotates 360° Optional.
| SPECIFICATIONS | BX 6.5S | |
| Timer Devices | Digital Timer (1-99 Min) | |
| Working Hours Counter | Available (Digital) | |
| Particle Size | Uniform Sub Microns | |
| Liquid Flow Rate | 1-3 Ltrs. / Hr. (Adjustable) | |
| Flow Control Mechanism | Available SS 316 | |
| Nozzle System | SS 316 Grade, Air- Jet Nozzle (Advance Thrust Design) | |
| Tank Capacity | 6.5 Ltrs. | |
| Tank MOC | SS 316 L | |
| Noise Level | <88 DB @ 1 Meter | |
| Air Filter | Triple Stage With Clamp | |
| Area Coverage | <20,000 Cubic Fts. | |
| Motor Speed | 24,000 RPM (Approx) | |
| Power Supply | 230 VAC, 50/60 Hz. | |
| Material Of Construction | Hardware:- SS 304, Strainer, Nipples:- SS 316, | |
| (MOC) | Tubing’s:- Silicon Grade (FDA & UPS CLASS VI Complient) | |
| Dry Weight | 7-8Kgs. | |
Accessories like oscillating systems (turntable) to oscillate the fogger are also available. There are two Oscillator models :
Rotostand :
To oscillate the fogger
@ max. 120 degrees.
Roto-360 :
To oscillate the fogger
@ full 360 degrees.
