Description

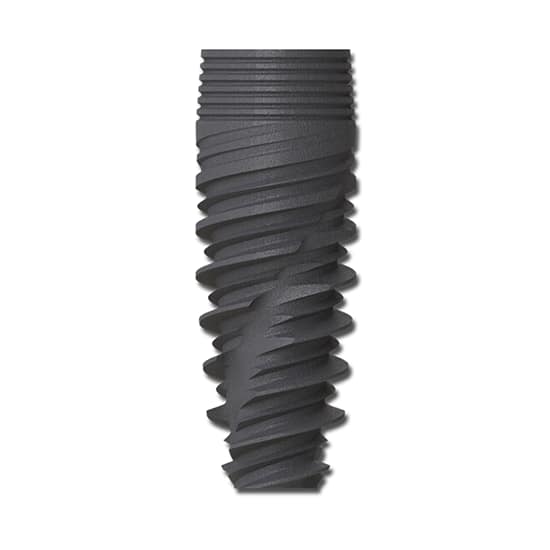

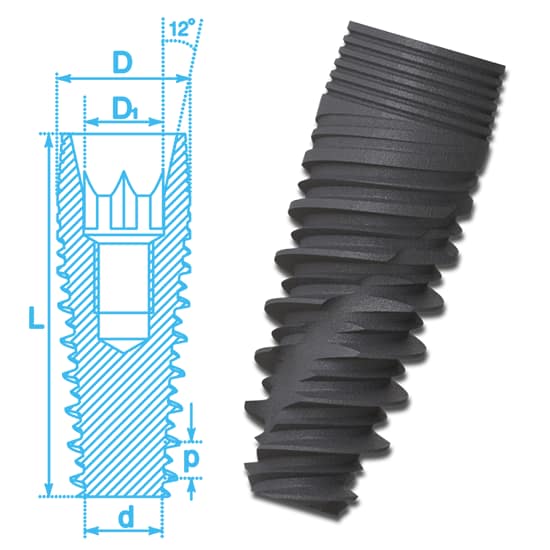

Active Konus implant has a platform with an inner cone and a hexagon
for positioning. This type of platform allows creating a conical connection
with suprastructures. This connection is more stable and airtight. 3.25 mm
diameter implants are installed in front and lateral parts (canine teeth, incisors, premolar teeth).
Platform Switching
«Switching» of the platform
Micro thread
Micro rings for better contact with a cortical plate
Active thread
Allows achieving reliable initial stability in soft bone
Apical part
Curving in apical part prevents the damage of Schneider’s membrane in sinus lift
Anti rotational sulcus
Prevents unscrewing
Two types of conical platforms with hexagon
Narrow platform 2.1 mm. Wide platform 2.5 mm
